Doosan Robotics A0509 Robot Arm
Doosan Robotics A0509 Robot Arm
Doosan Robotics A0509 Robot Arm
Doosan Robotics A0509 Robot Arm
Doosan Robotics A0509 Robot Arm
Doosan Robotics A0509 Robot Arm
-20%
Doosan Robotics A0509 Robot Arm

Doosan Robotics A0509 Robot Arm

Doosan Robotics A0509 Robot Arm
Doosan Robotics | A-000000-05552
€28,680.00
€22,944.00 VAT incl. €19,120.00 VAT excl.
Save 20%

With its 5 kg payload and 900 mm reach, the A0509 collaborative robot offers a speed and acceleration faster than the industry standard. It’s ideal for simple pick and place, boxing and line loading operations.

Controller
-- Please select an item --
  • Controller AC (CS-03)
  • Controller DC (CS-04)
Quantity
Delivery within 4 to 5 weeks
Ask for a quote

Create a cart and turn it into a quote instantly!
Payment methods (see T&C)
Debit card
PayPal
Payment by invoice
Wire transfer

Key features of the A0509 collaborative robot

  • 6-axis industrial collaborative robot
  • Payload: 5 kg
  • Reach: 900 mm
  • Repeatability: ±0.03 mm
  • Maximum speed: 1 m/s
  • Arm weight: 21 kg
  • Protection rating: IP54
  • Mounting: floor, wall or ceiling
  • Development: DART Platform, APIs and ROS 2
  • Mobile integration: DC controller available for AGVs and AMRs

A robust cobot for industrial applications

The Doosan A0509 is designed for integration into industrial environments and delivers consistent motion during intensive use. Its repeatability of ±0.03 mm enables trajectories to be reproduced accurately, particularly for pick-and-place, machine tending, inspection and dispensing applications.

Its compact design and flexible mounting options facilitate installation on a production line, workstation, frame or industrial machine. Depending on the application requirements, the arm can be mounted on the floor, wall or ceiling.

A true collaborative robot

The A0509 uses current sensors and safety algorithms to detect collisions. It incorporates 18 safety functions that allow its behaviour to be configured according to the collaborative application and working environment.

Compliance of the final installation depends on the installed tool, operating environment, selected speeds and the risk assessment carried out for the application.

A platform for research and education

The A0509 can be used as an experimental platform for developing projects involving robotic manipulation, vision, control, trajectory planning and human-robot interaction.

The DART Platform is used to program and configure the robot. APIs and resources compatible with ROS 2 are also available for developing custom applications, working with the robot model and using tools commonly employed in robotics research.

These capabilities can be used to study:

  • Object grasping and positioning
  • Trajectory planning and control
  • Integration of cameras and perception systems
  • Coordination between navigation and manipulation
  • Human-robot interaction
  • Programming of collaborative applications

Integration with an AGV or AMR

The Doosan A0509 is available with a CS-04 DC controller designed to facilitate integration with an AGV, AMR or other mobile platform. This configuration can be used to develop a mobile manipulator capable of moving between several workstations and performing grasping, loading or inspection operations.

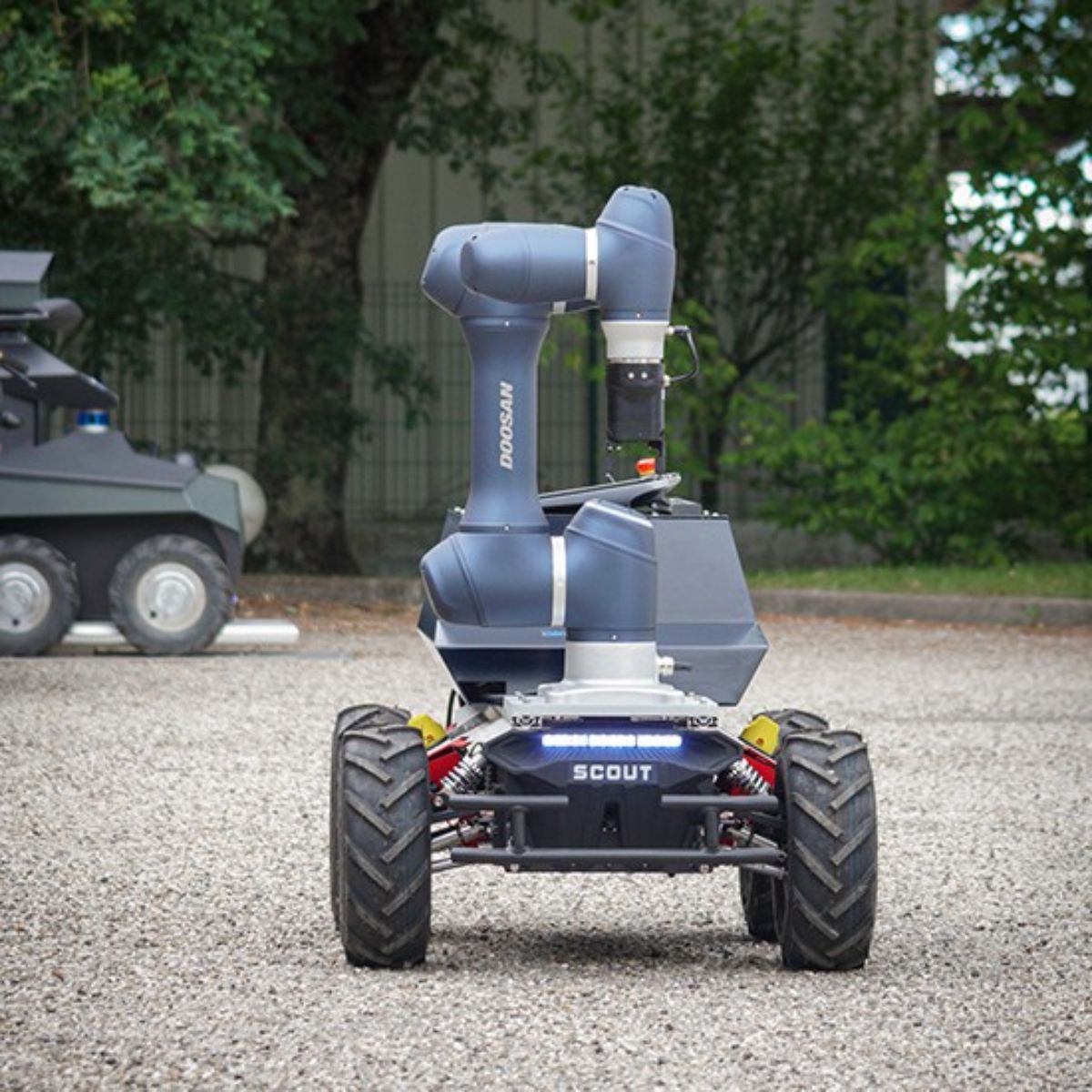

The arm can also be integrated with an outdoor mobile base for research projects involving mobile manipulation, robot positioning in front of an object, or coordination between locomotion and manipulation.

Robot mobile ScoutSan

Controllers and programming tools

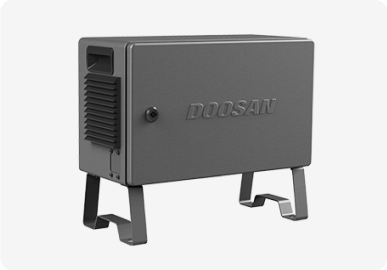

CS-03 AC controller

The AC controller is intended for fixed installations powered from the mains. It manages the robot’s power supply, communications, inputs and outputs, and safety functions.

CS-04 DC controller

More compact, the DC controller facilitates integration of the A0509 with a DC-powered mobile platform, including an AGV or AMR.

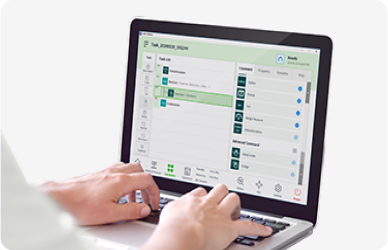

DART Platform

The DART Platform brings together the Doosan Robotics tools used to configure, program and control the robot through a dedicated interface.

Control devices

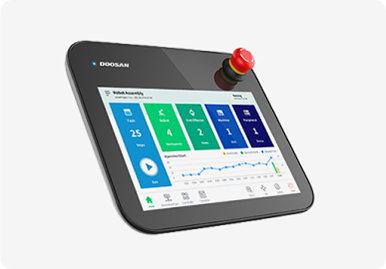

Depending on the selected configuration, the A0509 can be used with different control devices, including the Cockpit, Smart Pendant or Teach Pendant. The equipment included should be confirmed when configuring the order.

Technical specifications of the Doosan A0509 collaborative robot arm

Robot arm

  • Degrees of freedom: 6
  • Payload: 5 kg
  • Reach: 900 mm
  • Programming: DART-Platform
  • Weight: 21 kg
  • Speed: 1 m/s
  • Repeatability: +/- 0.03 mm
  • Noise: < 65 dB
  • Operating temperature: 0 to 45 °C
  • Humidity: 80°
  • Protection rating: IP54
  • Joint movement: ± [360 360 160 360 360 360] [º] / [180 180 180 360 360 360] [º/s]
  • Integrated FTS (A0509S only)
  • ROS and ROS 2 compatible
  • Real-time system with 0.001 second control loop

Controller

  • Interfaces: USB 3.0 (RS422/485**), TCP/IP
  • Fieldbus: Modbus-TCP (Master/Slave), Modbus-RTU (Master), EtherNet, IP (Adapter), PROFINET IP (Device)
  • Dimensions: 450 x 210 x 265 mm
  • Weight: 12 kg
  • Protection rating: IP40
  • Digital I/O: 16/16
  • Analogue I/O: 02/02
  • I/O power supply: 24 V / Max. 2 A
  • AC Controller Rated supply voltage: 100-240 VAC, 50-60 Hz
  • DC Controller Rated supply voltage: 22-60 VDC
  • Cable length (arm): 6 m

You have specific needs? Contact our design office to receive tailored help for your robotics project.

Resources for the Doosan A0509 collaborative arm

Contrôleur a0509

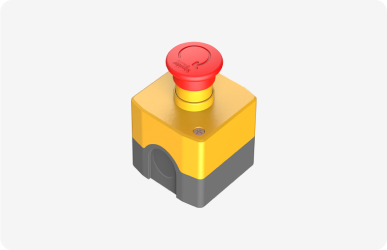

Bouton d'arrêt d'urgence Contrôleur a0509
